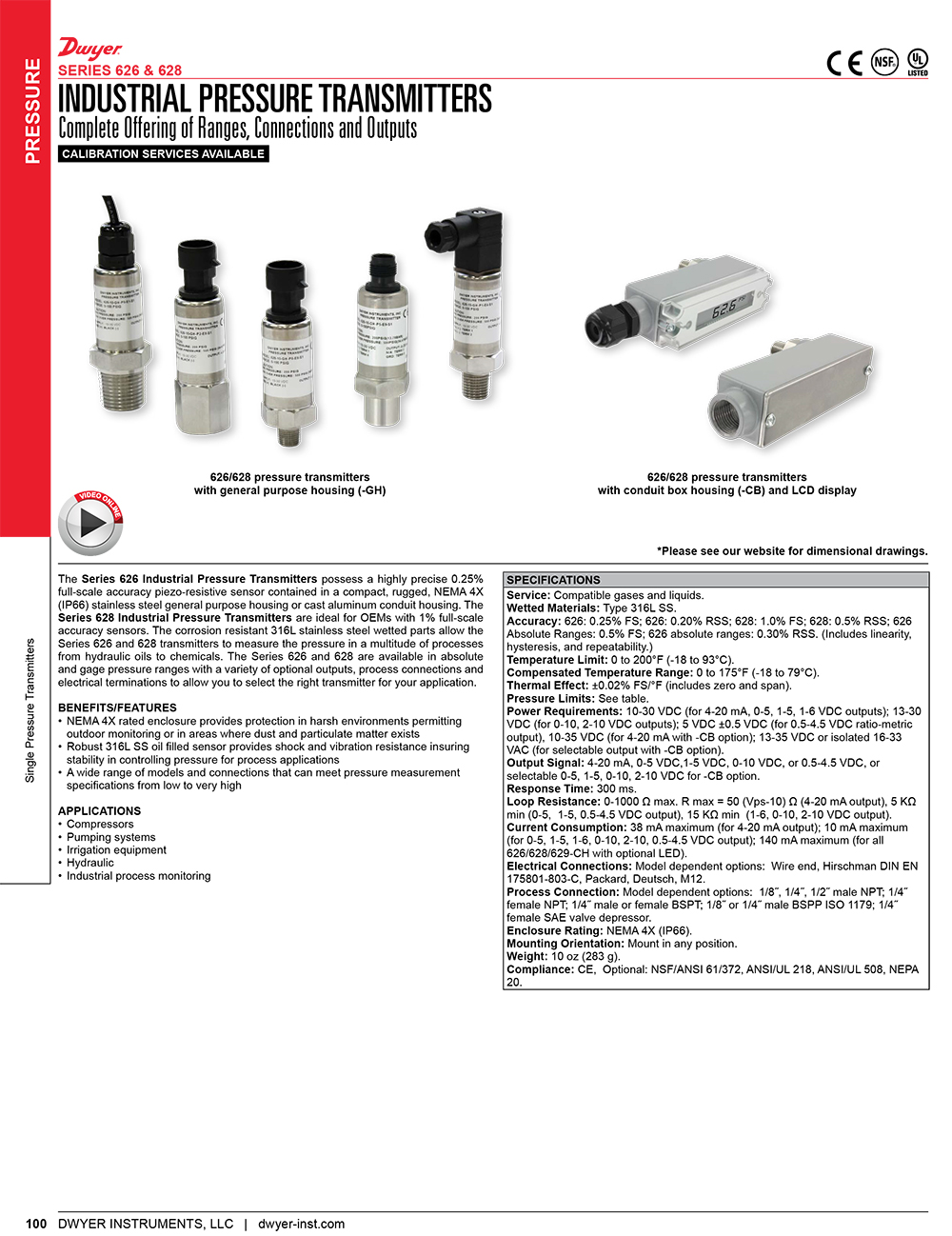

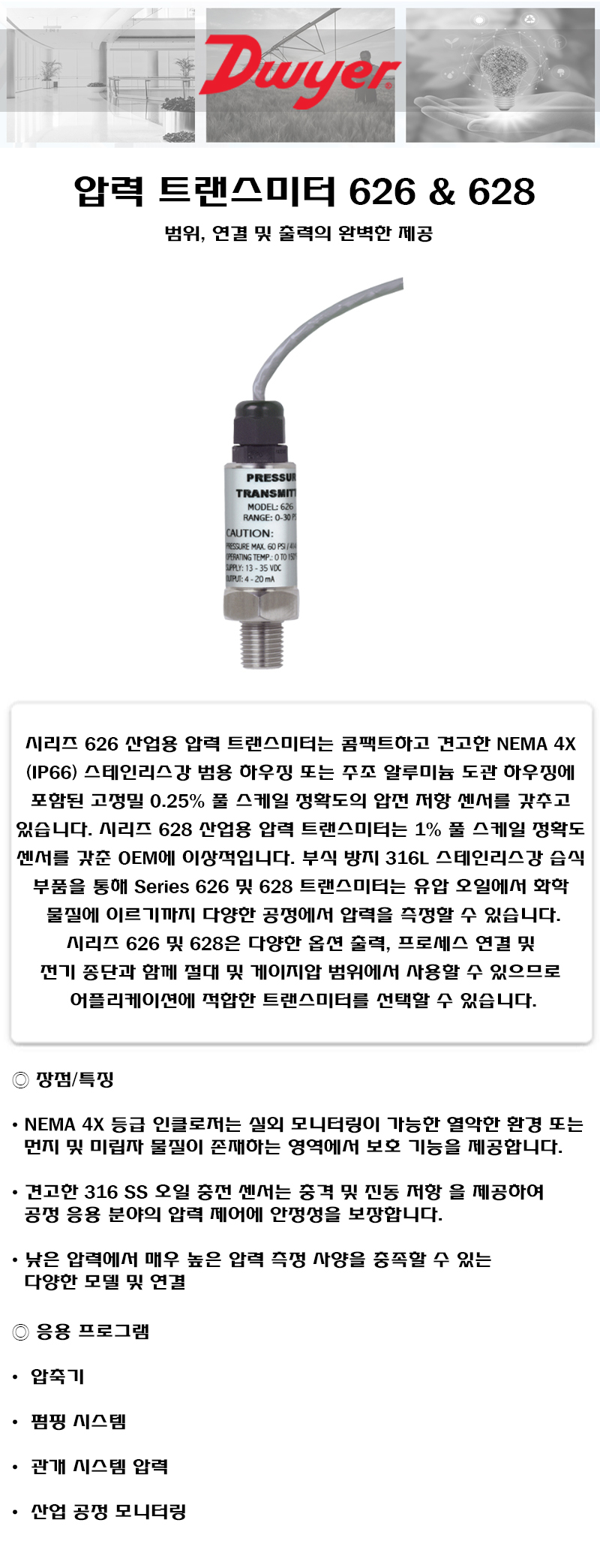

압력 트랜스미터 Dwyer 626 & 628
범위, 연결 및 출력의 완벽한 제공

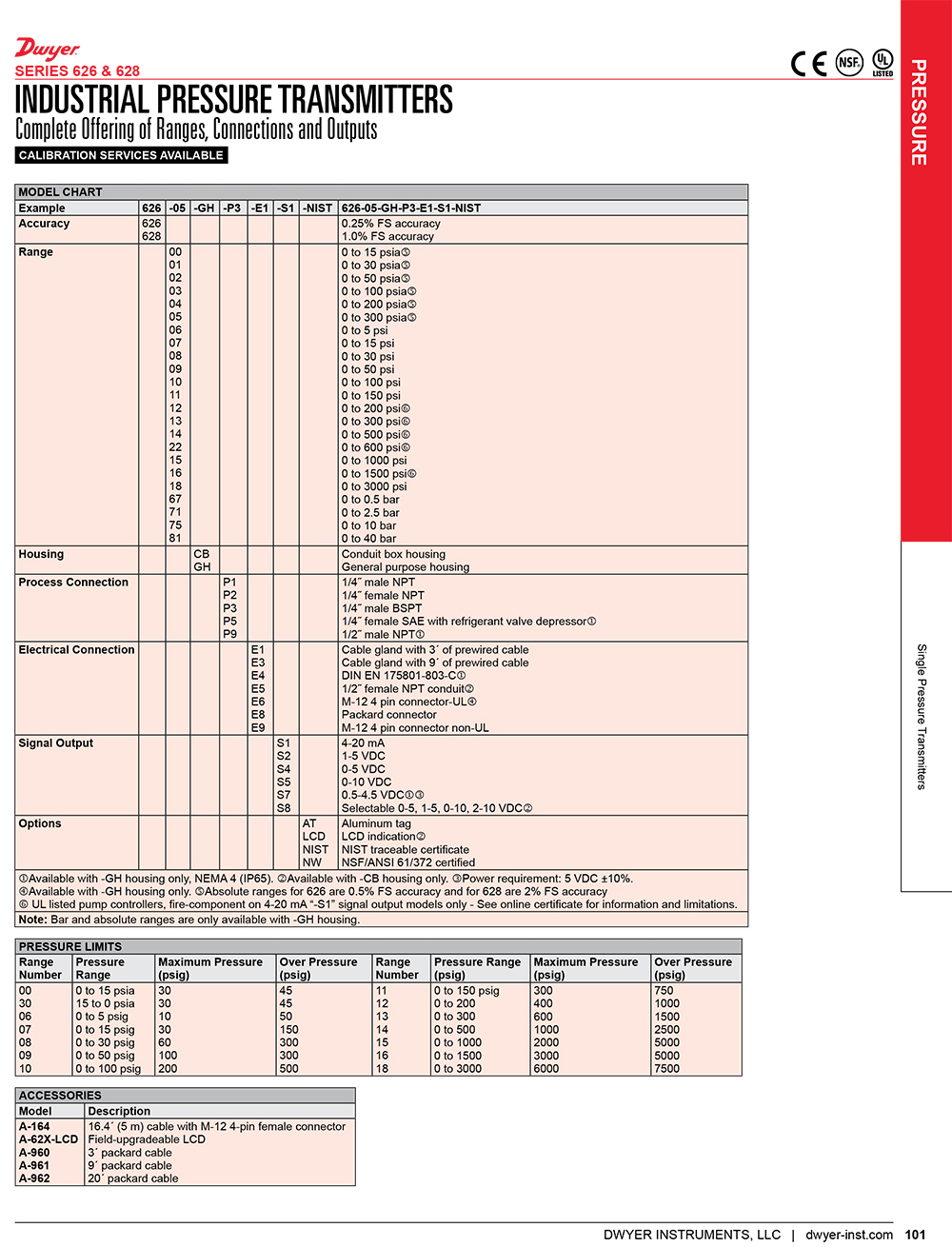

| Model | Description |
|---|---|
| 626-07-CB-P1-E5-S1 | Industrial pressure transmitter, range 0-15 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 30 psig, over pressure 150 psig. |
| 626-07-CB-P1-E5-S9 | Industrial pressure transmitter, range 0-15 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 30 psig, over pressure 150 psig. |
| 626-08-CB-P1-E5-S1 | Industrial pressure transmitter, range 0-30 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 60 psig, over pressure 300 psig. |
| 626-08-CB-P1-E5-S9 | Industrial pressure transmitter, range 0-30 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 60 psig, over pressure 300 psig. |
| 626-09-CB-P1-E5-S1 | Industrial pressure transmitter, range 0-50 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 100 psig, over pressure 300 psig. |
| 626-09-CB-P1-E5-S9 | Industrial pressure transmitter, range 0-50 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 100 psig, over pressure 300 psig. |
| 626-10-CB-P1-E1-S8 | Industrial pressure transmitter, range 0-100 psig, conduit box housing, 1/4" male NPT, 3' cable, 0-10V, max. pressure 200 psig, over pressure 500 psig. |
| 626-10-CB-P1-E5-S1 | Industrial pressure transmitter, range 0-100 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 200 psig, over pressure 500 psig. |
| 626-10-CB-P1-E5-S9 | Industrial pressure transmitter, range 0-100 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 200 psig, over pressure 500 psig. |
| 626-11-CB-P1-E5-S1 | Industrial pressure transmitter, range 0-150 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 300 psig, over pressure 750 psig. |
| 626-11-CB-P1-E5-S9 | Industrial pressure transmitter, range 0-150 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 300 psig, over pressure 750 psig. |
| 626-12-CB-P1-E5-S1 | Industrial pressure transmitter, range 0-200 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 400 psig, over pressure 1000 psig. |
| 626-12-CB-P1-E5-S9 | Industrial pressure transmitter, range 0-200 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 400 psig, over pressure 1000 psig. |
| 626-13-CB-P1-E5-S1 | Industrial pressure transmitter, range 0-300 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 600 psig, over pressure 1500 psig. |
| 626-13-CB-P1-E5-S9 | Industrial pressure transmitter, range 0-300 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 600 psig, over pressure 1500 psig. |
| 626-14-CB-P1-E5-S1 | Industrial pressure transmitter, range 0-500 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 1000 psig, over pressure 2500 psig. |
| 626-14-CB-P1-E5-S9 | Industrial pressure transmitter, range 0-500 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA no zero button, max. pressure 1000 psig, over pressure 2500 psig. |
