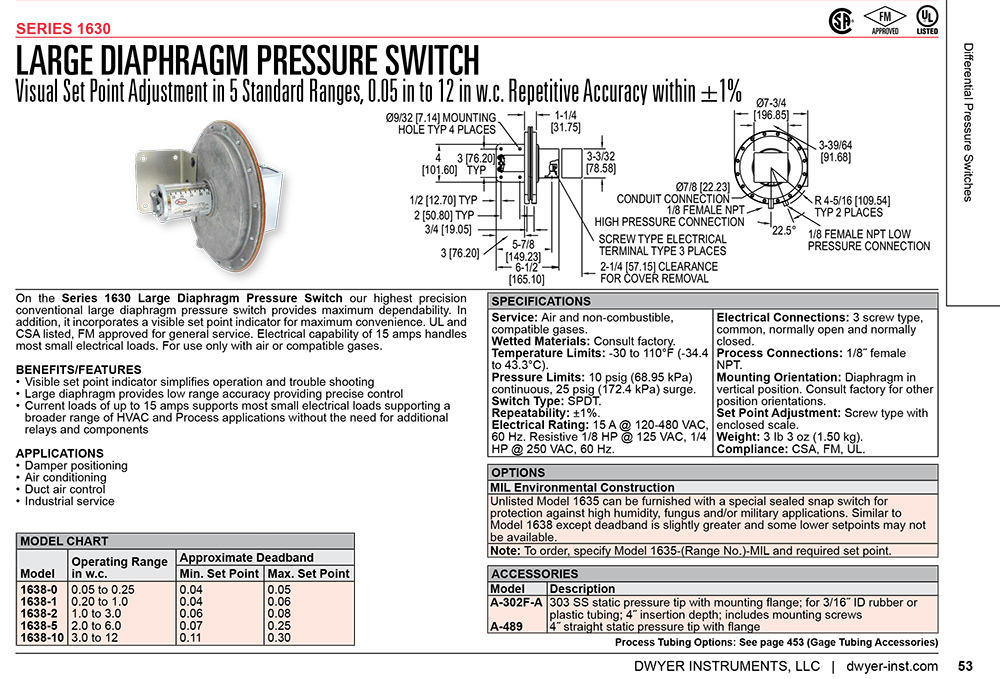

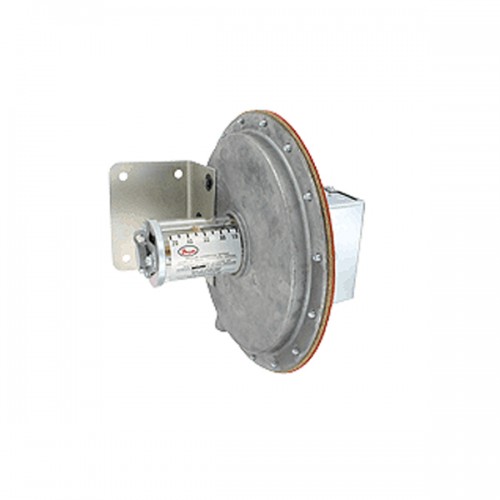

다이어프램 압력 스위치 Dwyer 1630
5가지 표준 범위에서 시각적 설정점 조정, 0.05"에서 12" w.c. ±1% 이내의 반복 정확도
| Model | Description |
|---|---|
| 1638-0 | Large diaphragm pressure switch, range 0.05-0.25" w.c., approx deadband @ 0.04 min. set point, 0.05 max. set point. |
| 1638-1 | Large diaphragm pressure switch, range 0.20-1.0" w.c., approx deadband @ 0.04 min. set point, 0.06 max. set point. |
| 1638-10 | Large diaphragm pressure switch, range 3.0-12" w.c., approx deadband @ 0.11 min. set point, 0.30 max. set point. |
| 1638-2 | Large diaphragm pressure switch, range 1.0-3.0" w.c., approx deadband @ 0.06 min. set point, 0.08 max. set point. |
| 1638-5 | Large diaphragm pressure switch, range 2.0-6.0" w.c., approx deadband @ 0.07 min. set point, 0.25 max. set point. |
