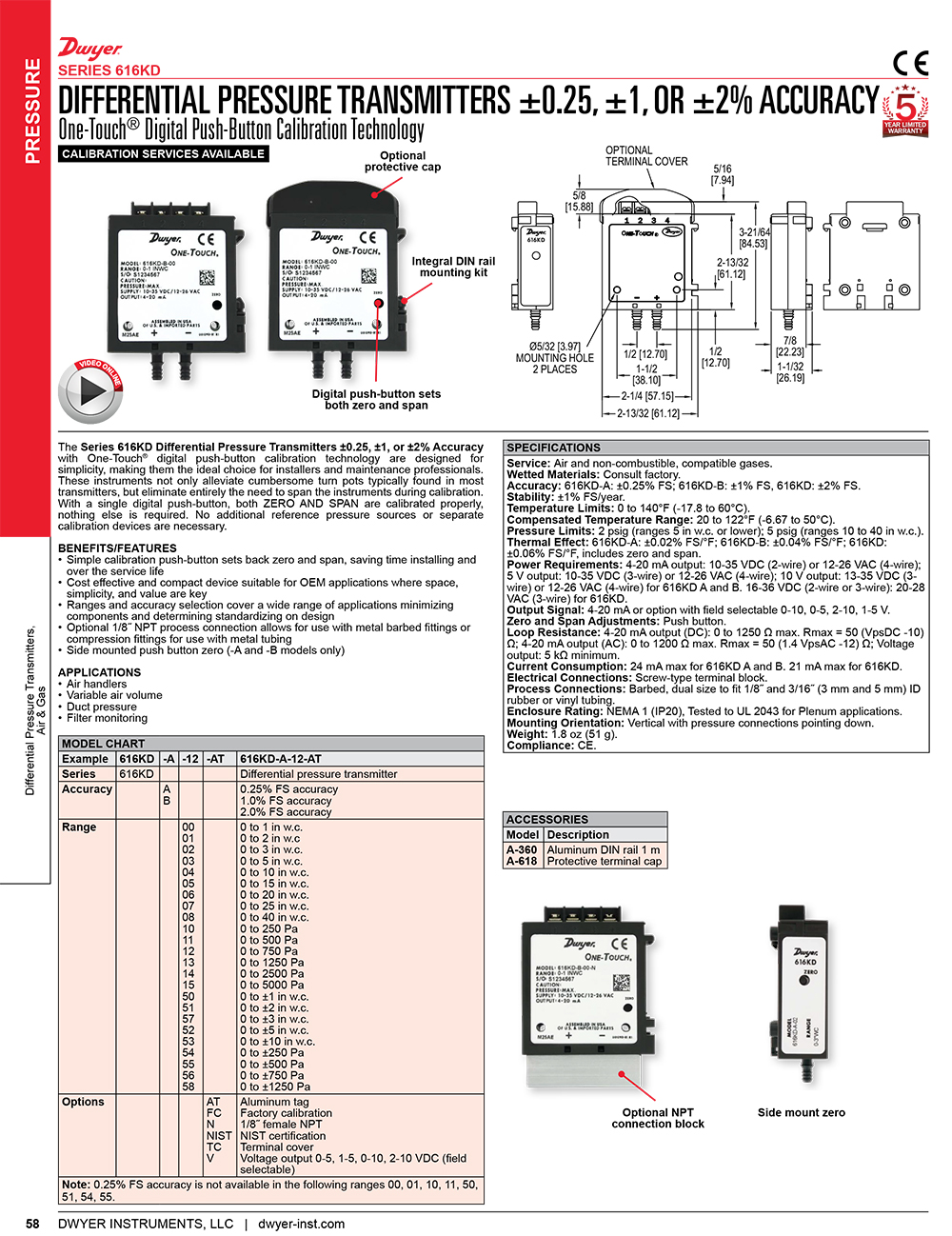

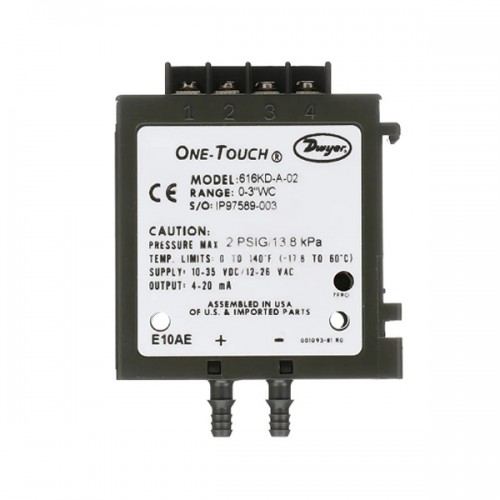

차압 트랜스미터 Dwyer 616KD
원터치® 디지털 푸시 버튼 보정 기술, ±0.25%, ±1 또는 ±2% 정확도
| Model | Description |
|---|---|
| 616KD-00 | Differential pressure transmitter, 0 to 1" w.c., 4-20 mA. |
| 616KD-01 | Differential pressure transmitter, 0 to 2" w.c., 4-20 mA. |
| 616KD-02 | Differential pressure transmitter, 0 to 3" w.c., 4-20 mA. |
| 616KD-03 | Differential pressure transmitter, 0 to 5" w.c., 4-20 mA. |
| 616KD-04 | Differential pressure transmitter, 0 to 10" w.c., 4-20 mA. |
| 616KD-05 | Differential pressure transmitter, 0 to 15" w.c., 4-20 mA. |
| 616KD-06 | Differential pressure transmitter, 0 to 20" w.c., 4-20 mA. |
| 616KD-07 | Differential pressure transmitter, 0 to 25" w.c., 4-20 mA. |
| 616KD-10 | Differential pressure transmitter, 0 to 250 Pa, 4-20 mA. |
| 616KD-11 | Differential pressure transmitter, 0 to 500 Pa, 4-20 mA. |
| 616KD-12 | Differential pressure transmitter, 0 to 750 Pa, 4-20 mA. |
| 616KD-13 | Differential pressure transmitter, 0 to 1250 Pa, 4-20 mA. |
| 616KD-14 | Differential pressure transmitter, 0 to 2500 Pa, 4-20 mA. |
| 616KD-15 | Differential pressure transmitter, 0 to 5000 Pa, 4-20 mA. |
