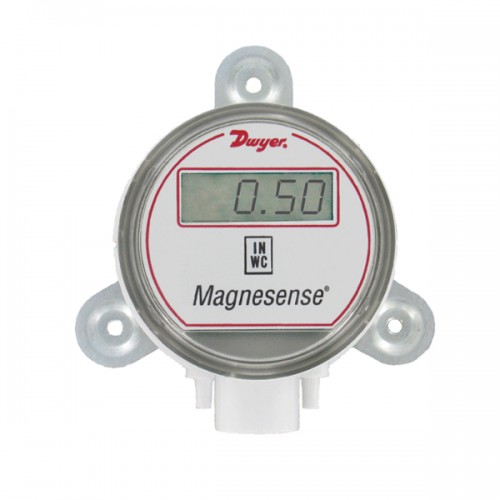

차압 트랜스미터 Dwyer MS Magnesense®
압력 및 풍속 모니터링
| Model | Description |
|---|---|
| MS-131-LCD | Differential pressure transmitter, 4-20 mA output, selectable range 10" w.c. (2 kPa), wall mount, with LCD. |
| MS-141-LCD | Differential pressure transmitter, 4-20 mA output, selectable range 15" w.c. (3 kPa), wall mount, with LCD. |
| MS-151-LCD | Differential pressure transmitter, 4-20 mA output, selectable range 25" w.c. (5 kPa), wall mount, with LCD. |
| MS-221-LCD | Differential pressure transmitter, 0-10 V output, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount, with LCD. |
| MS-311-LCD | Differential pressure transmitter, 0-10 V output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount, with LCD. |
| MS-312-LCD | Differential pressure transmitter, 0-10 V output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount, with LCD. |
| MS-321-LCD | Differential pressure transmitter, 0-10 V output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount, with LCD. |
| MS-322-LCD | Differential pressure transmitter, 0-10 V output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount, with LCD. |
| MS-621-LCD | Differential pressure transmitter, 5 VDC output, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount, with LCD. |
| MS-711-LCD | Differential pressure transmitter, 5 VDC output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount, with LCD. |
| MS-712-LCD | Differential pressure transmitter, 5V output, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount, with LCD. |
| MS-721-LCD | Differential pressure transmitter, 5 VDC output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount, with LCD. |
| MS-722-LCD | Differential pressure transmitter, 5 VDC output, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount, with LCD. |
| MS-821-LCD | Differential pressure transmitter, 5V output, 12V input, selectable range ±0.1", 0.25", 0.5" w.c. (±25, 50, 100 Pa), wall mount, with LCD. |
| MS-911-LCD | Differential pressure transmitter, 5V output, 12V input, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), wall mount, with LCD. |
| MS-912-LCD | MS-912 Differential pressure transmitter, 5V output, 12V input, selectable range 1", 2", 5" w.c. (250, 500, 1250 Pa), duct mount, with LCD. |
| MS-921-LCD | Differential pressure transmitter, 5V output, 12V input, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), wall mount, with LCD. |
| MS-922-LCD | Differential pressure transmitter, 5V output, 12V input, selectable range 0.1", 0.25", 0.5" w.c. (25, 50, 100 Pa), duct mount, with LCD. |
