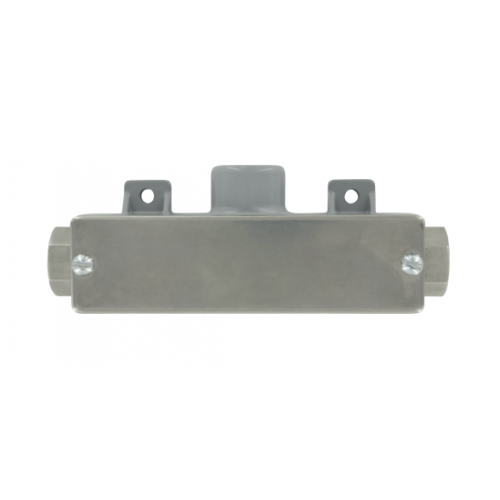

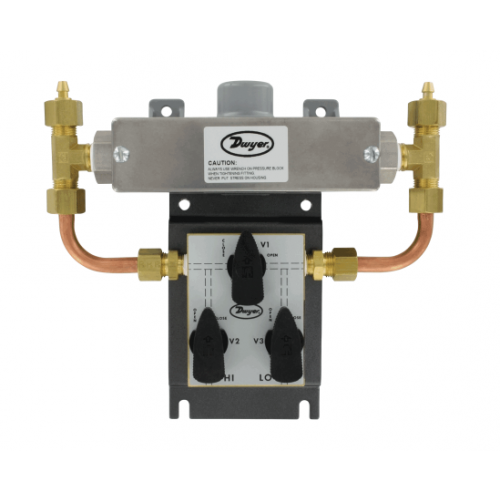

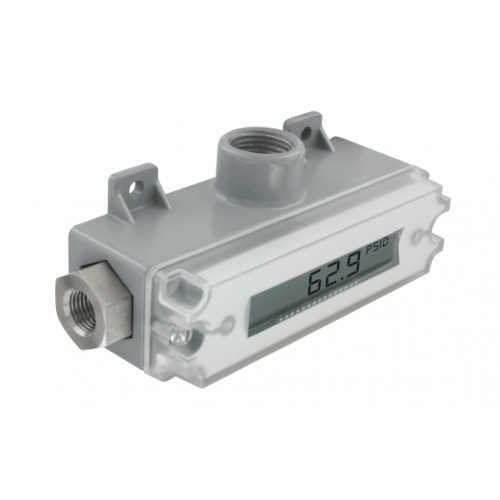

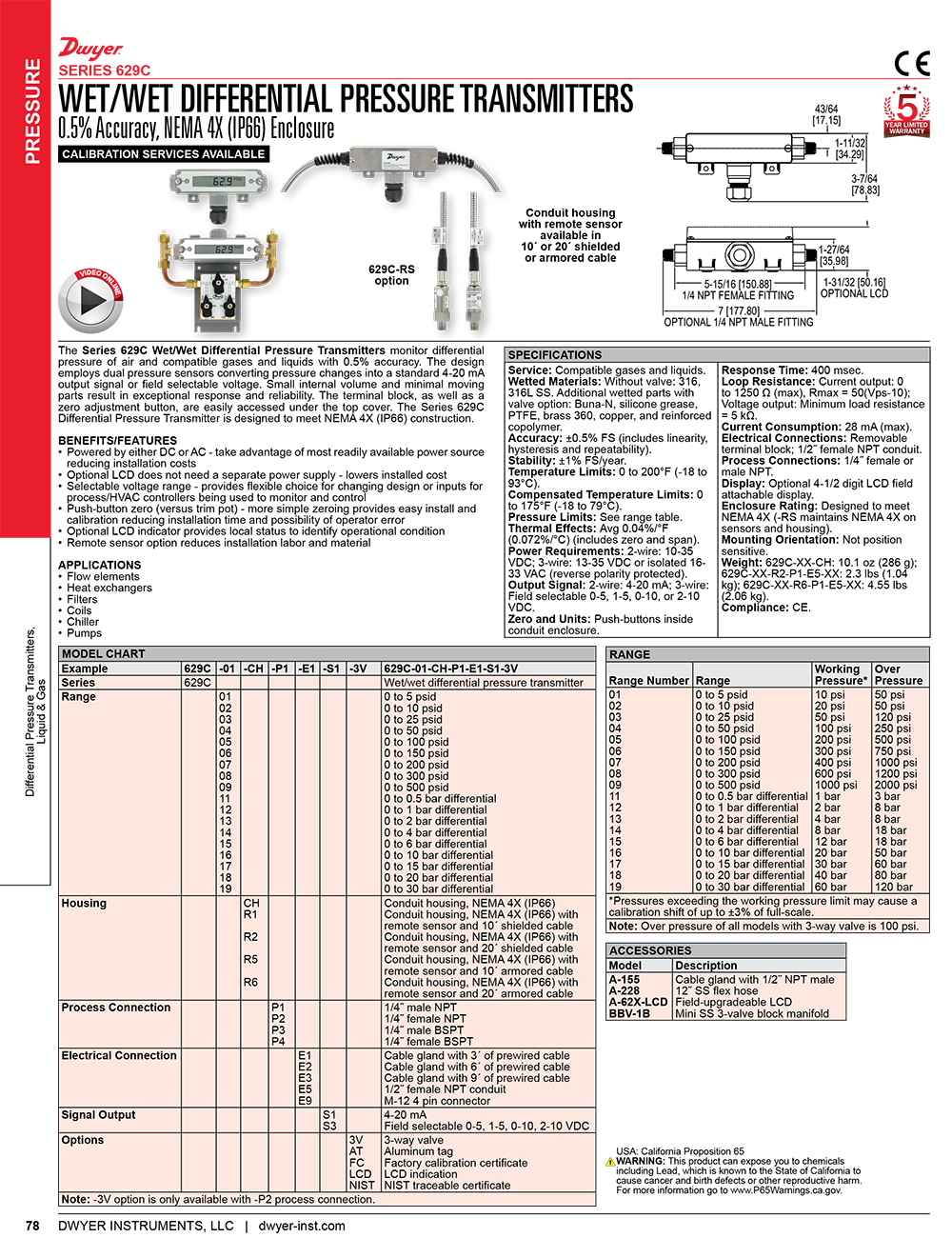

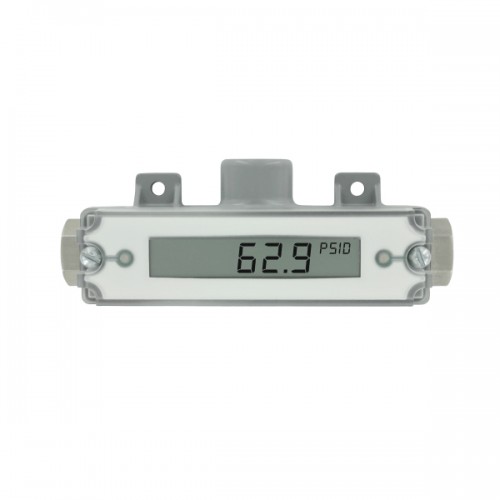

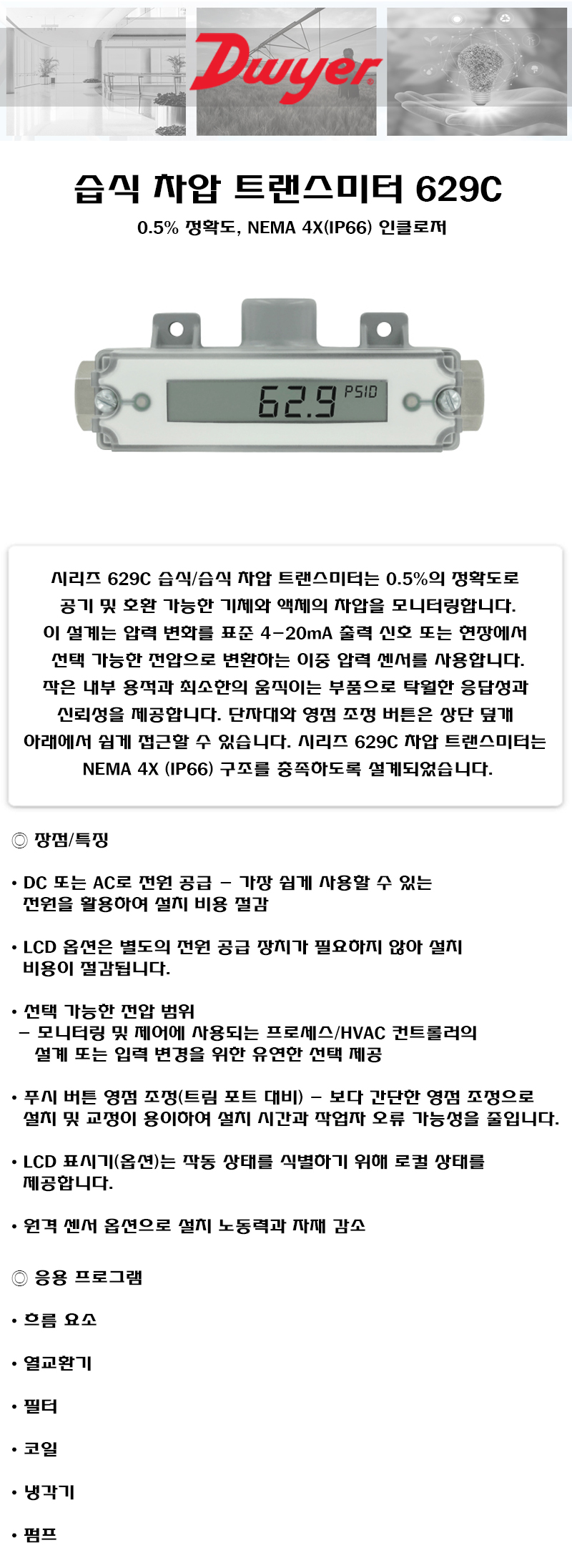

습식 차압 트랜스미터 Dwyer 629C
0.5% 정확도, NEMA 4X(IP66) 인클로저
| Model | Description |
|---|---|
| 629C-02-R2-P1-E5-S1 | Wet/wet differential pressure transmitter, range 10 psid, working pressure 20 psi, over pressure 100 psi with remote sensors and 20' shielded cable. |
| 629C-02-R6-P1-E5-S1 | Wet/wet differential pressure transmitter, range 10 psid, working pressure 20 psi, over pressure 100 psi with remote sensors and 20' armored cable. |
| 629C-03-R1-P1-E5-S3 | Wet/wet differential pressure transmitter, range 25 psid, working pressure 50 psi, over pressure 250 psi with remote sensors and 10' shielded cable. |
| 629C-03-R5-P1-E5-S3 | Wet/wet differential pressure transmitter, range 25 psid, working pressure 50 psi, over pressure 250 psi with remote sensors and 10' armored cable. |
| 629C-05-R1-P1-E5-S3 | Wet/wet differential pressure transmitter, range 100 psid, working pressure 200 psi, over pressure 500 psi with remote sensors and 10' shielded cable. |
| 629C-05-R5-P1-E5-S3 | Wet/wet differential pressure transmitter, range 100 psid, working pressure 200 psi, over pressure 500 psi with remote sensors and 10' armored cable. |
