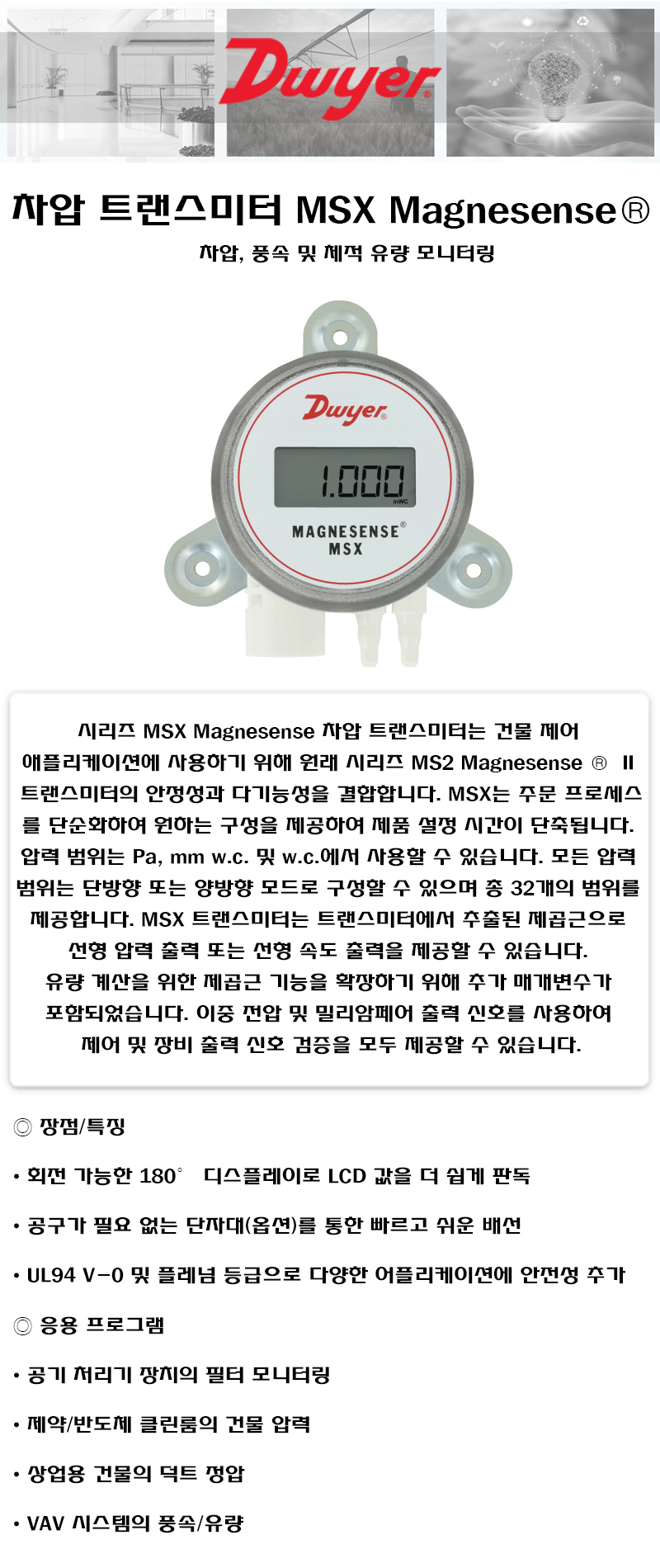

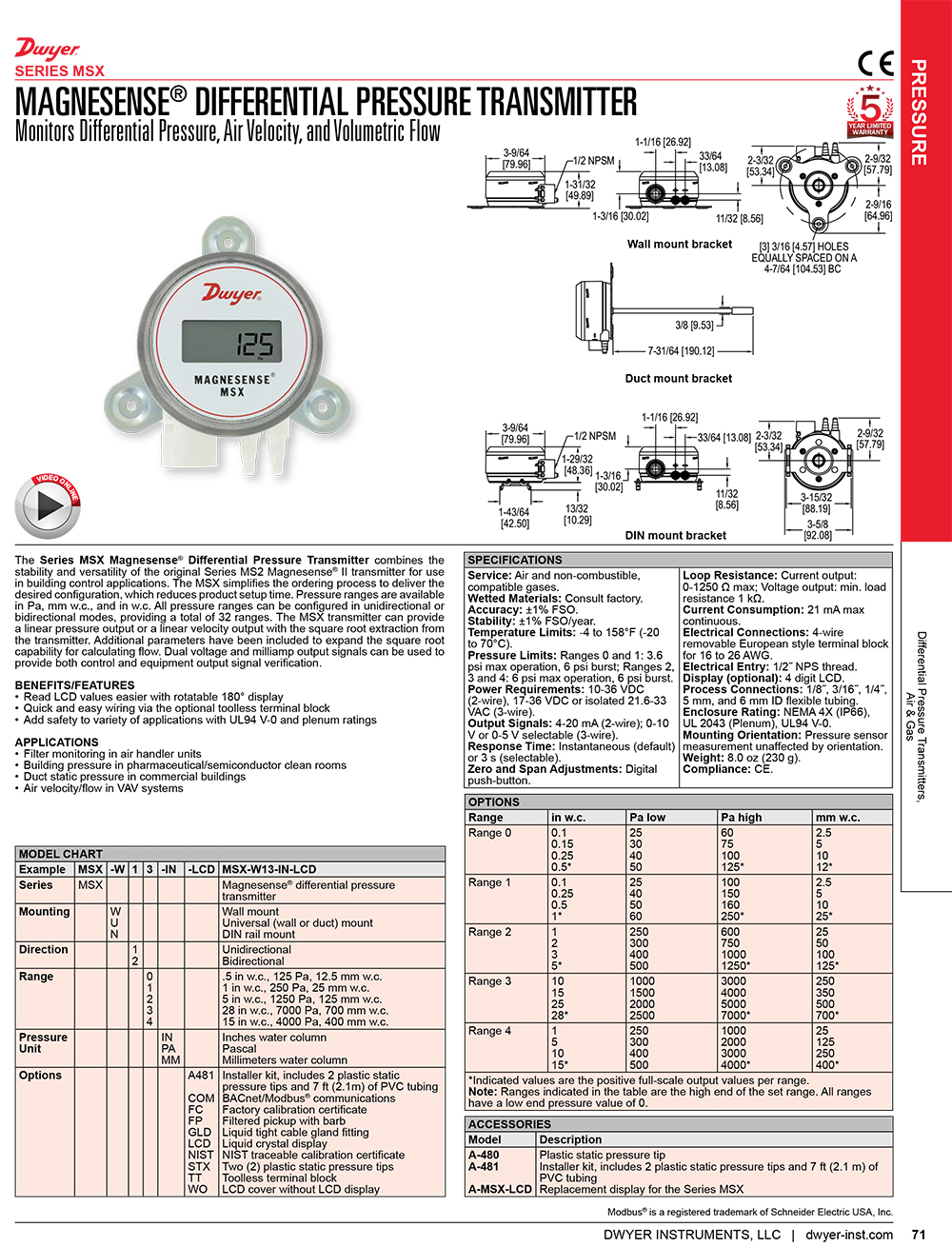

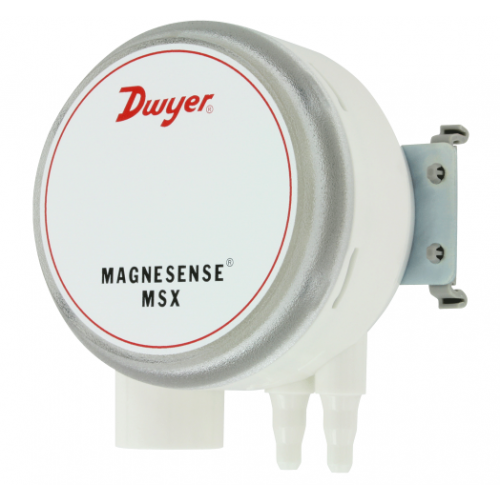

차압 트랜스미터 Dwyer MSX Magnesense®
차압, 풍속 및 체적 유량 모니터링
| Model | Description |
|---|---|
| MSX-W10-IN | Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 0 (0.1, 0.15, 0.25, 0.5" wc). |
| MSX-W11-IN | Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 1 (0.1, 0.25, 0.5, 1" wc). |
| MSX-W12-IN | Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 2 (1, 2, 3, 5" wc). |
| MSX-W13-IN | Differential pressure transmitter, wall mount, universal current/voltage outputs, uni-directional, range 3 (10, 15, 25, 28" wc). |
| MSX-W20-IN | Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 0 (0.1, 0.15, 0.25, 0.5" wc). |
| MSX-W21-IN | Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 1 (0.1, 0.25, 0.5, 1" wc). |
| MSX-W22-IN | Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 2 (1, 2, 3, 5" wc). |
| MSX-W23-IN | Differential pressure transmitter, wall mount, universal current/voltage outputs, bi-directional, range 3 (10, 15, 25, 28" wc). |
