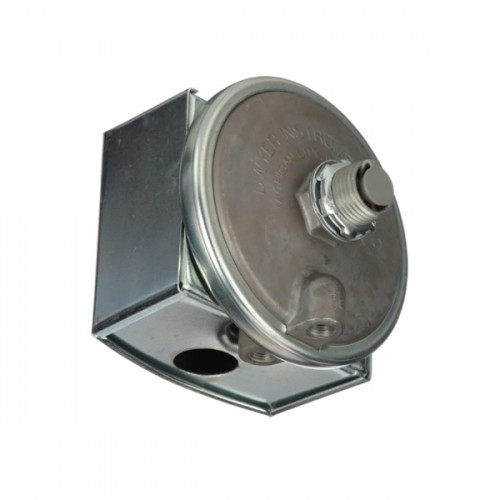

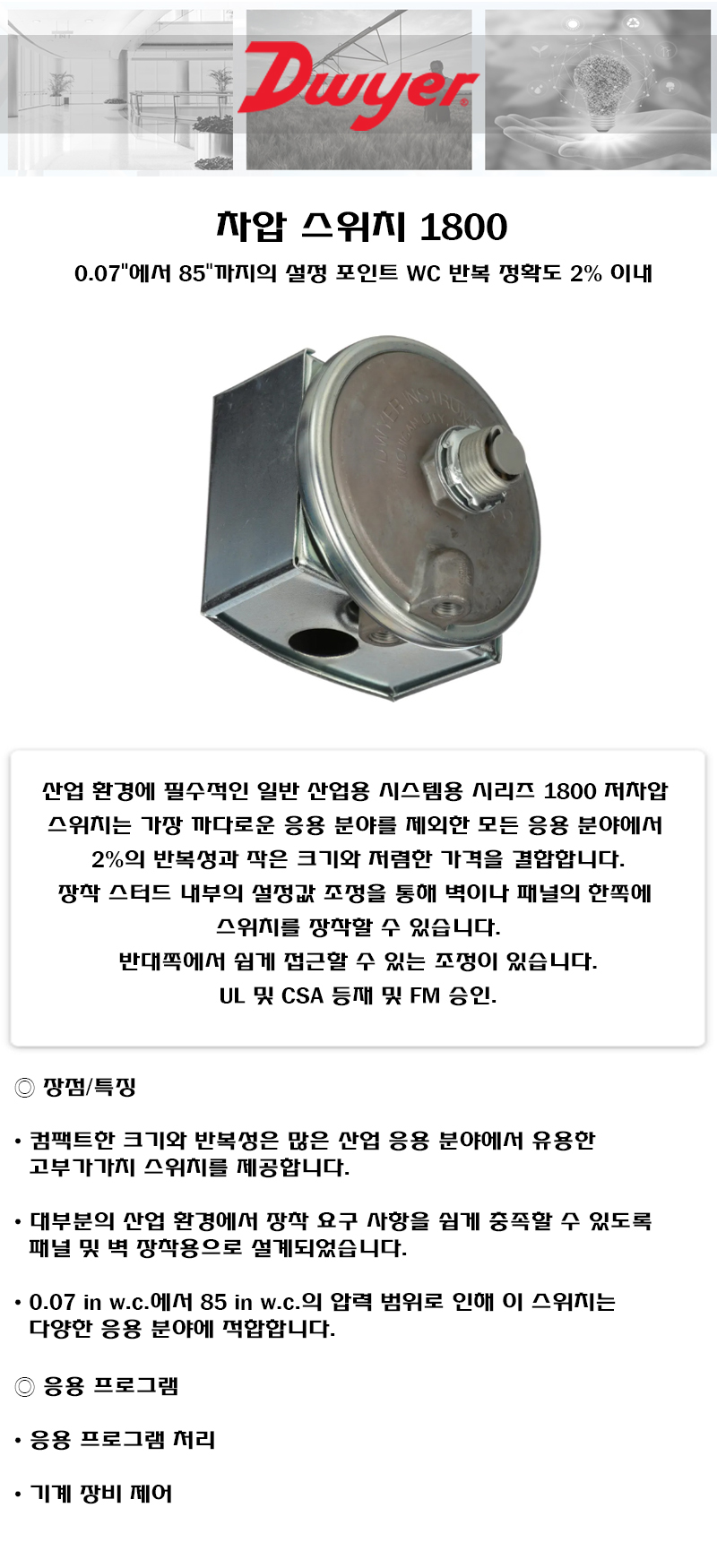

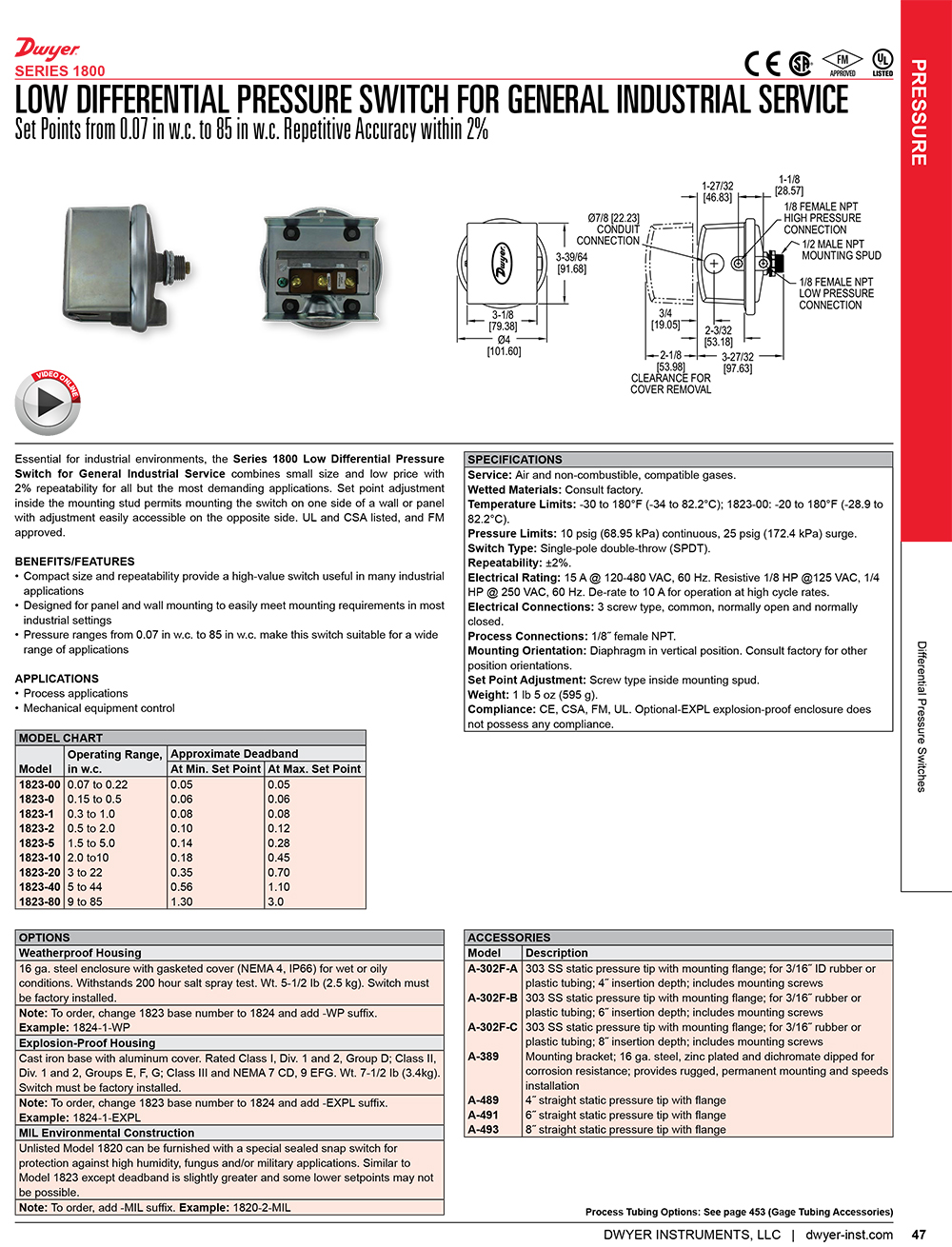

차압 스위치 Dwyer 1800
0.07"에서 85"까지의 설정 포인트 WC 반복 정확도 2% 이내
| Model | Description |
|---|---|
| 1823-0 | Differential pressure switch, range 0.15-.5" w.c., approx. deadband @ min. set point 0.06, approx. deadband @ max. set point 0.06. |
| 1823-00 | Differential pressure switch, range 0.07-0.22" w.c., approx. deadband @ min. set point 0.05, approx. deadband @ max. set point 0.05. |
| 1823-1 | Differential pressure switch, range 0.3-1.0" w.c., approx. deadband @ min. set point 0.08, approx. deadband @ max. set point 0.08. |
| 1823-10 | Differential pressure switch, range 2.0-10" w.c., approx. deadband @ min. set point 0.18, approx. deadband @ max. set point 0.45. |
| 1823-2 | Differential pressure switch, range 0.5-2.0" w.c., approx. deadband @ min. set point 0.10, approx. deadband @ max. set point 0.12. |
| 1823-20 | Differential pressure switch, range 3-22" w.c., approx. deadband @ min. set point 0.35, approx. deadband @ max. set point 0.70. |
| 1823-40 | Differential pressure switch, range 5-44" w.c., approx. deadband @ min. set point 0.56, approx. deadband @ max. set point 1.10. |
| 1823-5 | Differential pressure switch, range 1.5-5.0" w.c., approx. deadband @ min. set point 0.14, approx. deadband @ max. set point 0.28. |
| 1823-80 | Differential pressure switch, range 9-85" w.c., approx. deadband @ min. set point 1.30, approx. deadband @ max. set point 3.0. |
