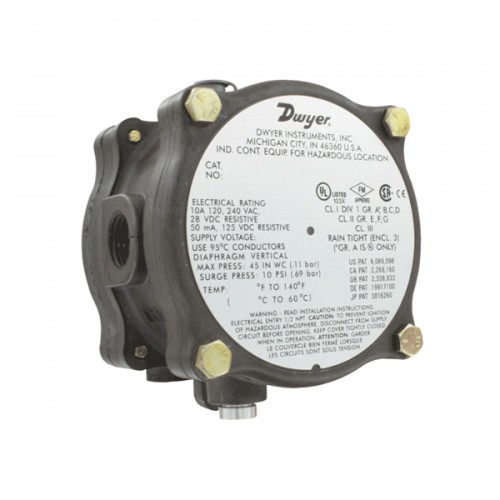

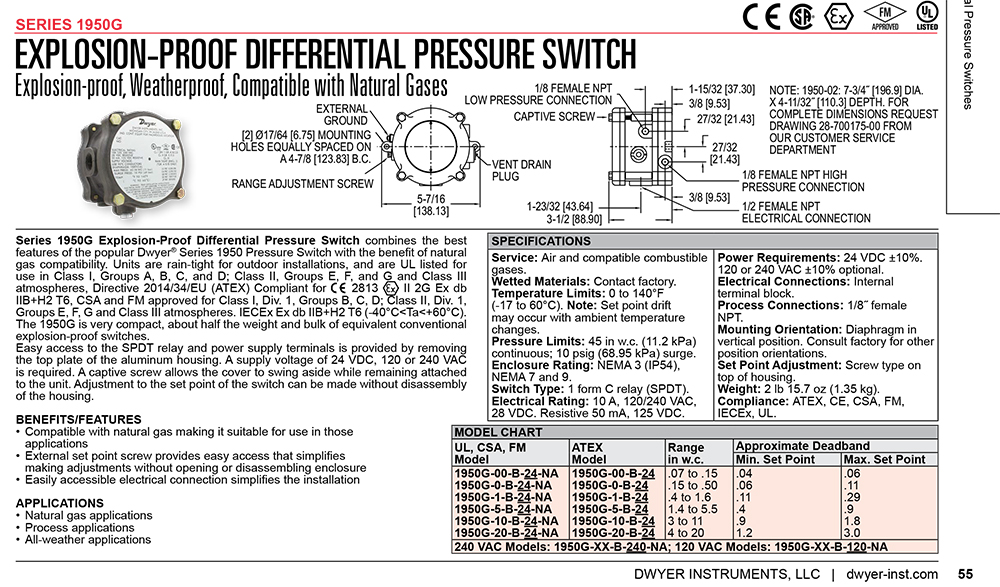

방폭형 차압스위치 Dwyer 1950G
방폭,비바람에 견디는 천연 가스와 호환 가능
| Model | Description |
|---|---|
| 1950G-0-B-120-NA | Explosion-proof differential pressure switch, range .15-.50" w.c., approx. deadband @ min. set point .06, approx. deadband @ max. set point .11. |
| 1950G-00-B-120-NA | Explosion-proof differential pressure switch, range .07-.15" w.c., approx. deadband @ min. set point .04, approx. deadband @ max. set point .06. |
| 1950G-1-B-120-NA | Explosion-proof differential pressure switch, range .4-1.6" w.c., approx. deadband @ min. set point .11, approx. deadband @ max. set point .29. |
| 1950G-10-B-120-NA | Explosion-proof differential pressure switch, range 3-11" w.c., approx. deadband @ min. set point .9, approx. deadband @ max. set point 1.8. |
| 1950G-20-B-120-NA | Explosion-proof differential pressure switch, range 4-20" w.c., approx. deadband @ min. set point 1.2, approx. deadband @ max. set point 3.0. |
| 1950G-5-B-120-NA | Explosion-proof differential pressure switch, range 1.4-5.5" w.c., approx. deadband @ min. set point .4, approx. deadband @ max. set point .9. |
